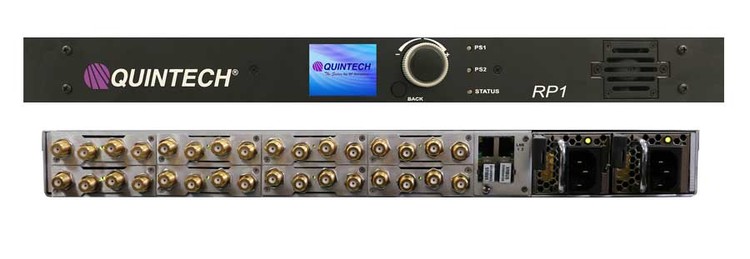

RP1: Modular 1RU Chassis w/LNB Power Insertion and Redundancy Switch Cards

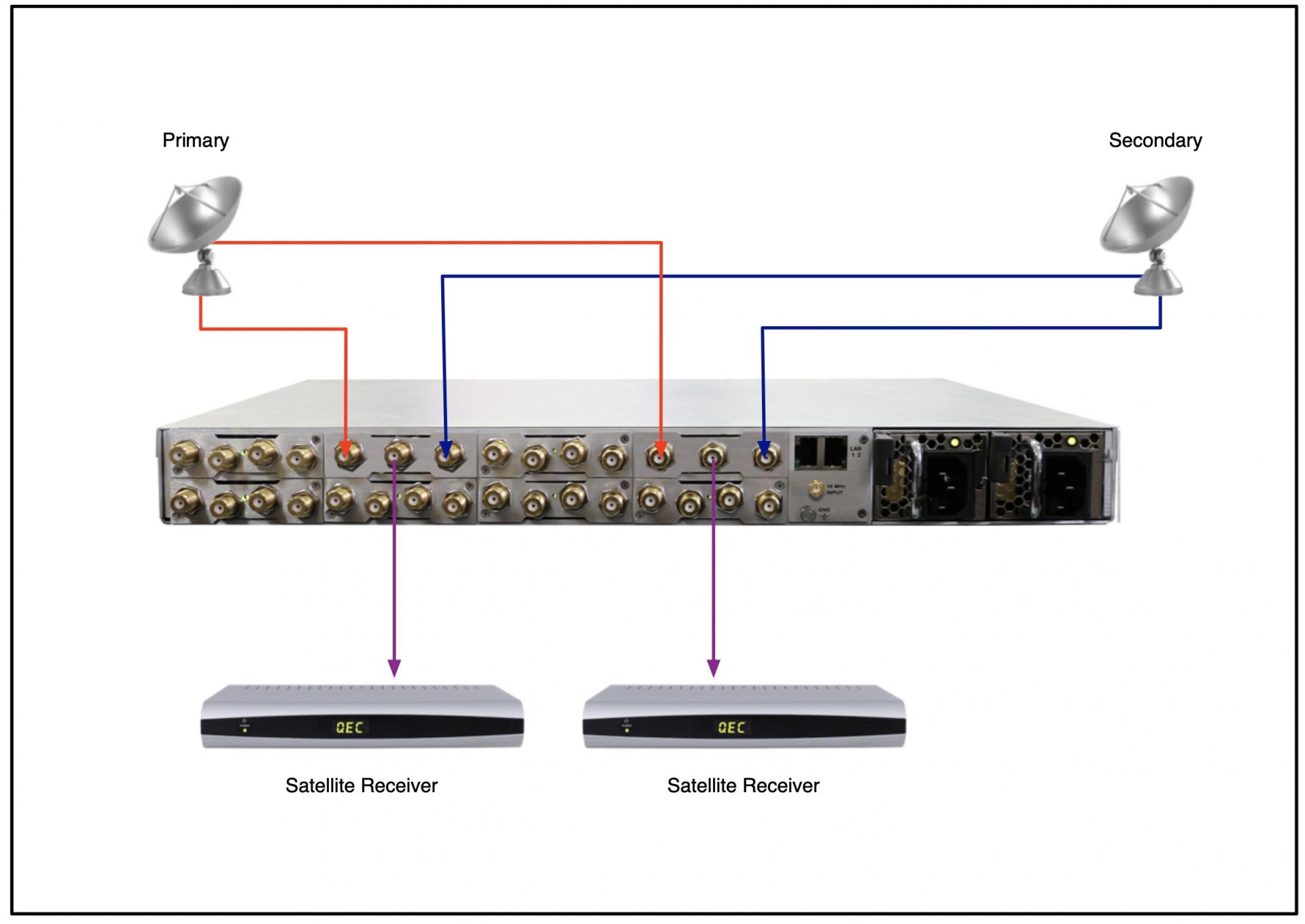

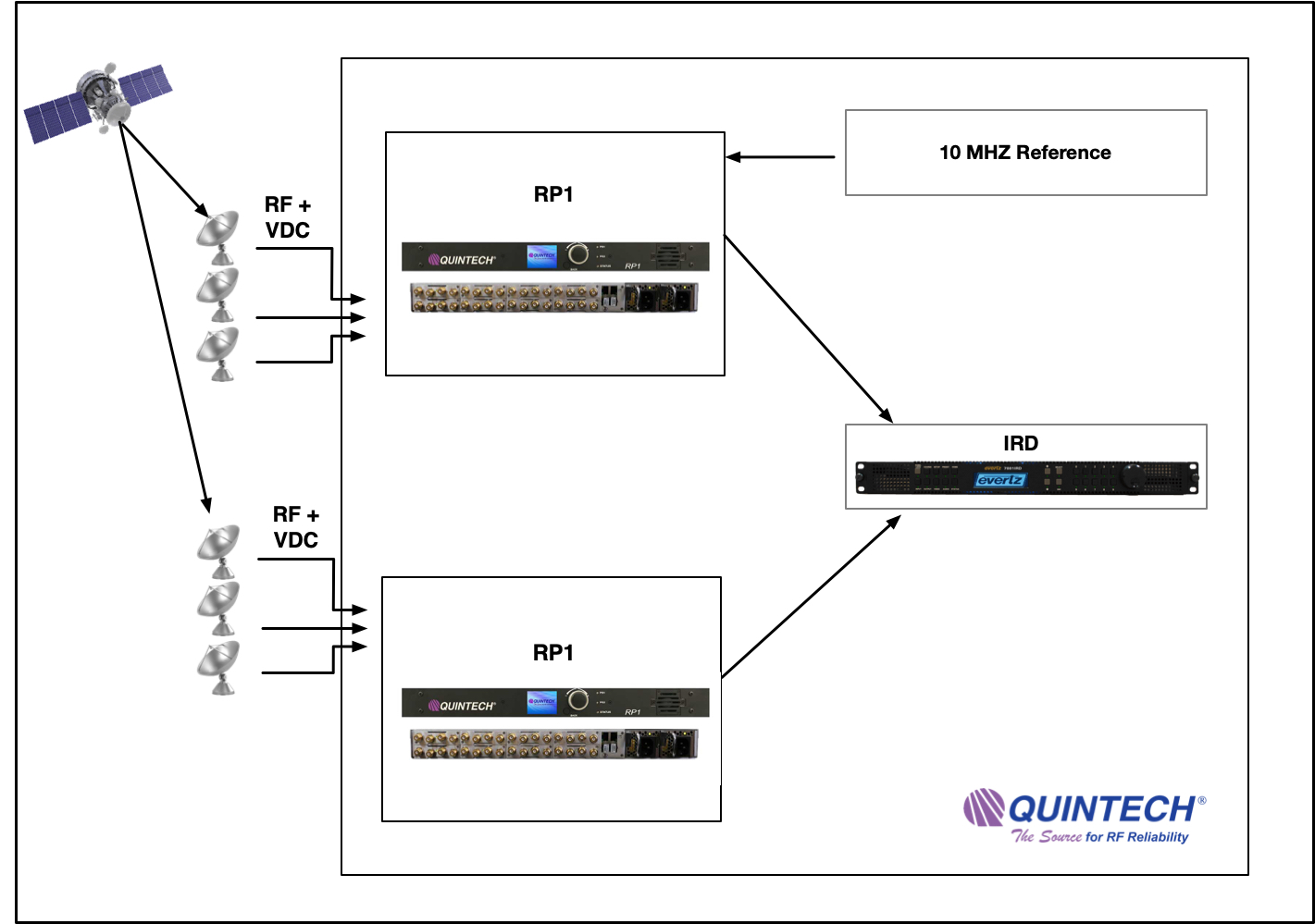

The RP1 1RU modular chassis provides centralized power control and signal redundancy options. Hot-Swappable redundant power supplies, I/O Modules, and a field replaceable cooling fan provide maximum reliability. Eight card slots provide combinations of up to 16 Bias-T DC Power Inserters, eight 2x1 RF sensing redundancy switches with Q-SENSE© and LNB power, or 16 quick disconnect switchable DC power outputs. Remote control is available via web browser GUI, SNMP, or Quintech API protocol over TCP/IP.
