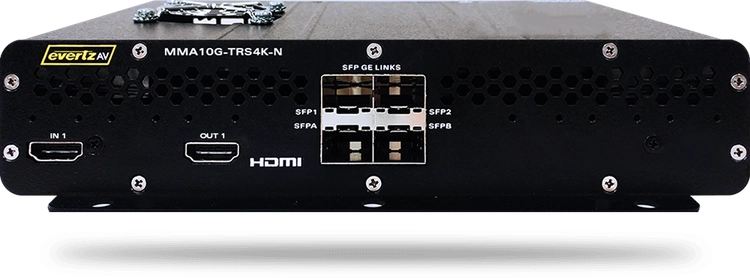

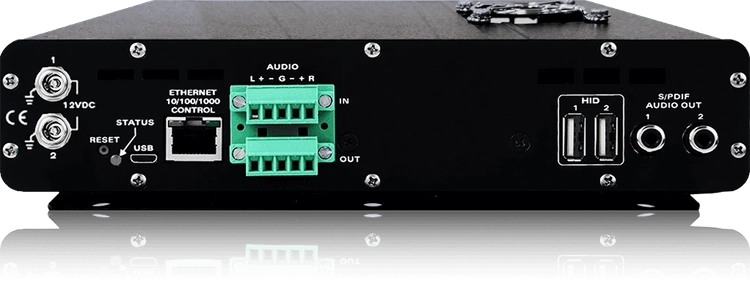

Standalone IPMX-Ready 4K/60 HDMI Gateway
Key Features
Specifications
| 1 HDMI 2.0a |
| 1 HDMI 2.0a |
| Up to 4096x2160p @ 60 Hz (4:4:4 color sampling) |
| 1 stereo balanced analog (terminal header) |
| High impedance |
| Line level (+4dBu) |
| 1 stereo balanced analog (terminal header) 2 S/PDIF |
| 600 Ω |
| Line level (+4dBu) |
| 2 HID device ports (type A) 1 HID host port (micro type B) |
| 10/100/1000 BASE -T RJ45 Ethernet Port (IEEE 802.3) |
| RJ45 |
| 2 SFP+ (see available accessories) |
| Yes |
| Yes |
| LPCM (up to 8 channels) Passthrough support for Dolby Digital®/AC-3, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS-HD High Res, DTS-HD Master Audio, DTS:X |
| SMPTE ST 2110, JPEG-XS, AES67, PTP |
| Yes |
| Yes |
| MAGNUM-AV |
| Yes |
| Compliant with applicable DoD Network Devices Security Technical Implementation Guide (STIG) findings |
| 12VDC via supplied power adapter |
| 100-240V / 47-63Hz AC input; 12VDC / 5A output |
| 30W |
| 32° to 104° F (0° to 40° C) |
| 10% to 90% RH (non-condensing) |
| 1.81in x 8.25in x 6.56in (45.97mm x 209.55mm x 166.62mm) |
| 32 oz (907.19 g) |
Ordering Information
MMA10G-TRS4K-N
| Standalone IPMX-ready 4K/60 HDMI gateway: HDMI input or output, audio, HID USB, and Ethernet |
Specifications
| 1 HDMI 2.0a |
| 1 HDMI 2.0a |
| Up to 4096x2160p @ 60 Hz (4:4:4 color sampling) |
| 1 stereo balanced analog (terminal header) |
| High impedance |
| Line level (+4dBu) |
| 1 stereo balanced analog (terminal header) 2 S/PDIF |
| 600 Ω |
| Line level (+4dBu) |
| 2 HID device ports (type A) 1 HID host port (micro type B) |
| 10/100/1000 BASE -T RJ45 Ethernet Port (IEEE 802.3) |
| RJ45 |
| 2 SFP+ (see available accessories) |
| Yes |
| Yes |
| LPCM (up to 8 channels) Passthrough support for Dolby Digital®/AC-3, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS-HD High Res, DTS-HD Master Audio, DTS:X |
| SMPTE ST 2110, JPEG-XS, AES67, PTP |
| Yes |
| Yes |
| MAGNUM-AV |
| Yes |
| Compliant with applicable DoD Network Devices Security Technical Implementation Guide (STIG) findings |
| 12VDC via supplied power adapter |
| 100-240V / 47-63Hz AC input; 12VDC / 5A output |
| 30W |
| 32° to 104° F (0° to 40° C) |
| 10% to 90% RH (non-condensing) |
| 1.81in x 8.25in x 6.56in (45.97mm x 209.55mm x 166.62mm) |
| 32 oz (907.19 g) |
Ordering Information
MMA10G-TRS4K-N
| Standalone IPMX-ready 4K/60 HDMI gateway: HDMI input or output, audio, HID USB, and Ethernet |
