The Evertz 3405 series SFPs are used in the 3405 and 3505 series of mounting frames, and 7708SFP series of card- based SFP carriers. Depending on the model, these SFPs support optical transmit, receive or regenerator functions. Reclocked versions support standard SMPTE rates for 3G/HD/SD/ASI signals, while non-reclocked versions support other rates such as MADI.
For appropriate mounting frames, please also see the 3405FR and 3505FR series frames, which are available in standalone and rackmount solutions to accommodate two to 64 SFP modules.
Optical SFP Module Overview

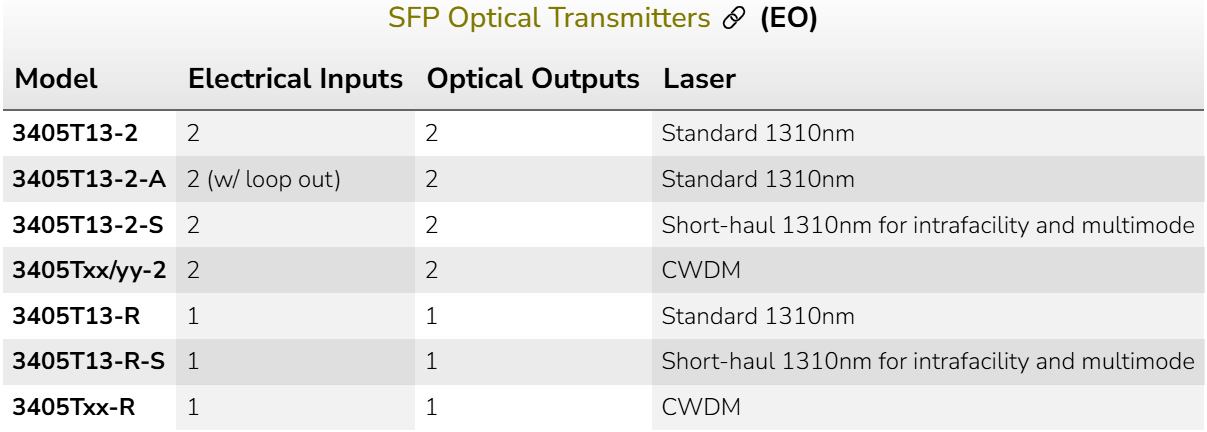

Optical Transmitter SFPs
3405T13-2
Dual channel SFP optical transmitter with standard 1310nm lasers. Non-reclocked, with support for 3G, HD, SD and ASI plus other rates such as MADI.
3405T13-2-A

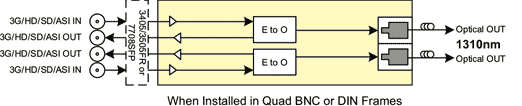

Dual channel SFP optical transmitter using standard 1310nm lasers with one loop out per channel. Non-reclocked, with support for 3G, HD, SD and ASI plus other rates such as MADI.
3405T13-2-S

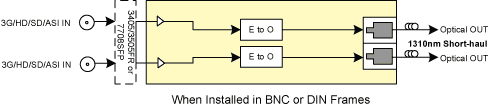

Dual channel SFP optical transmitter with short-haul 1310nm lasers. Non-reclocked, with support for 3G, HD, SD and ASI plus other rates such as MADI. For use in intra-facility and multimode fiber applications.
3405Txx/yy-2
Dual channel SFP optical transmitter with short-haul 1310nm lasers. Non-reclocked, with support for 3G, HD, SD and ASI plus other rates such as MADI. For use in intra-facility and multimode fiber applications.
3405T13-R

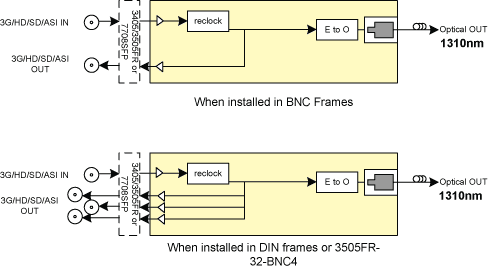

Single channel SFP optical transmitter with standard 1310nm laser. Reclocked with support for 3G, HD, SD and ASI. Single electrical loop-out when installed in a BNC frame, triple electrical loop-out when installed in a frame with DIN 1.0/2.3 connectors.
3405T13-R-S

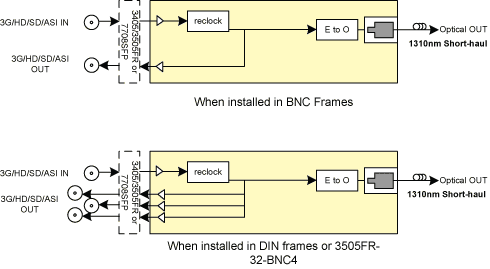

Single channel SFP optical transmitter with short-haul 1310nm laser. Reclocked with support for 3G, HD, SD and ASI. Single electrical loop-out when installed in a BNC frame, triple electrical loop-out when installed in a frame with DIN 1.0/2.3 connectors. For use in intra-facility and multimode fiber applications.
3405Txx-R

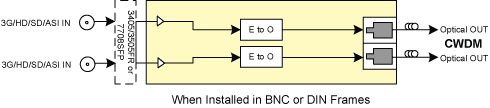

Single channel SFP optical transmitter with CWDM laser, available in 16 G.694.2-compliant wavelengths from 1270nm to 1610nm. Reclocked with support for 3G, HD, SD and ASI. Single electrical loop-out when installed in a BNC frame, triple electrical loop-out when installed in a frame with DIN 1.0/2.3 connectors.

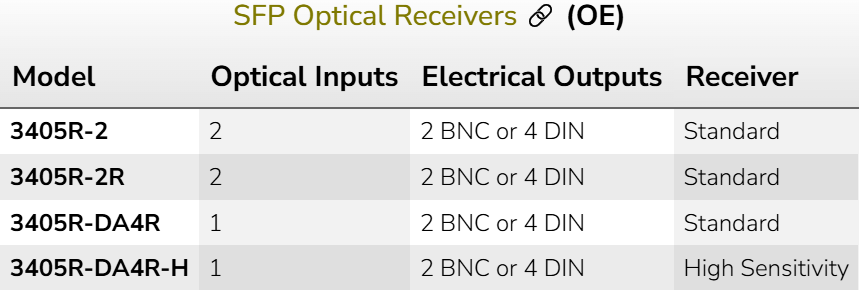

Optical Receiver SFPs
3405R-2R

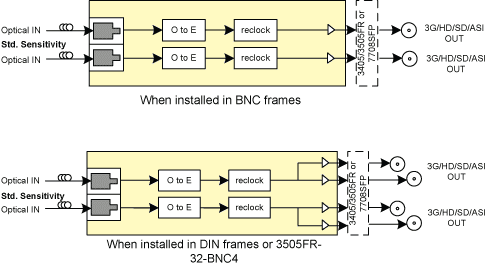

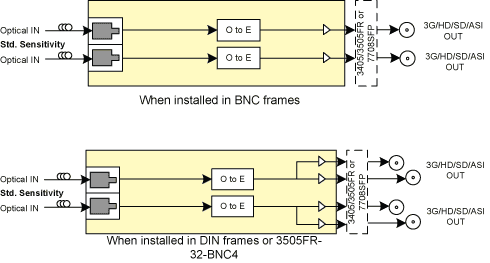

Dual channel SFP optical receiver. Reclocked with support for 3G, HD, SD and ASI. Single electrical output per optical input when installed in a BNC frame, dual electrical output per optical input when installed in a frame with DIN 1.0/2.3 connectors.
3405R-2
Dual channel SFP optical receiver. Non-reclocked, with support for 3G, HD, SD and ASI plus other rates such as MADI. Single electrical output per optical input when installed in a BNC frame, dual electrical output per optical input when installed in a frame with DIN 1.0/2.3 connectors.
3405R-DA4R

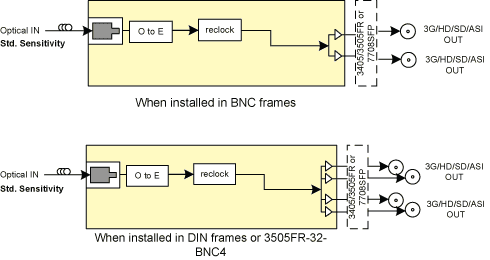

Single channel SFP optical receiver. Reclocked with support for 3G, HD, SD and ASI. Dual electrical output when installed in a BNC frame, quad electrical output when installed in a frame with DIN 1.0/2.3 connectors.
3405R-DA4R-H
Single channel SFP optical high-sensitivity receiver. Reclocked with support for 3G, HD, SD and ASI. Dual electrical output when installed in a BNC frame, quad electrical output when installed in a frame with DIN 1.0/2.3 connectors.

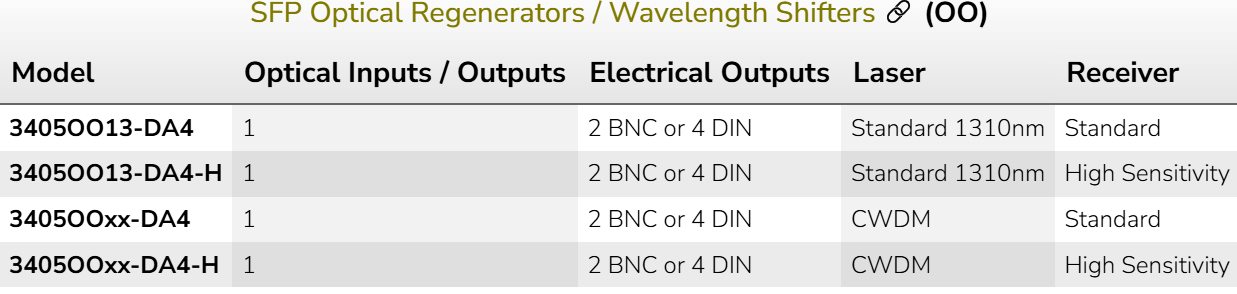

Optical Regenerator/Wavelength Shifter SFPs
3405OO13-DA4

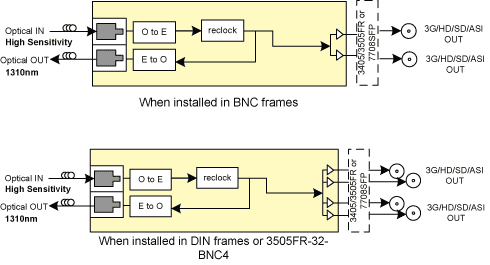

Single channel SFP optical regenerator with standard 1310nm laser. Reclocked optical and electrical outputs with support for 3G, HD, SD and ASI. Dual electrical output when installed in a BNC frame, quad electrical output when installed in a frame with DIN 1.0/2.3 connectors.
3405OO13-DA4-H
Single channel SFP optical regenerator with standard 1310nm laser and high sensitivity receiver. Reclocked optical and electrical outputs with support for 3G, HD, SD and ASI. Dual electrical output when installed in a BNC frame, quad electrical output when installed in a frame with DIN 1.0/2.3 connectors.
3405OOxx-DA4
Single channel SFP optical regenerator with standard 1310nm laser and high sensitivity receiver. Reclocked optical and electrical outputs with support for 3G, HD, SD and ASI. Dual electrical output when installed in a BNC frame, quad electrical output when installed in a frame with DIN 1.0/2.3 connectors.
3405OOxx-DA4-H
Single channel SFP optical regenerator with high sensitivity receiver and CWDM laser, available in 16 G.694.2-compliant wavelengths from 1270nm to 1610nm. Reclocked optical and electrical outputs with support for 3G, HD, SD and ASI. Dual electrical output when installed in a BNC frame, quad electrical output when installed in a frame with DIN 1.0/2.3 connectors.
