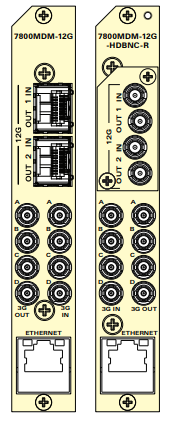

With many UHD signals still existing as quad-link 3G, there is a real need to provide high density 12G-SDI conversions. The 7800MDM-12G is a bi-directional multiplexer/de-multiplexer for converting UHD signals between quad-link 3G and 12G-SDI. Capable of transport format transformations in both directions simultaneously, it supports both SQD (square division multiplexed) as well as 2si (two sample interleaved) signals with the ability to convert between each on the quad-link I/Os. 7800MDM-12G needs only a single slot in a 7800 series frame, providing the high density broadcasters need during the transition phase to 12G-SDI.
Features
, [[CP-2116E or CP-2232EWith many UHD signals still existing as quad-link 3G, there is a real need to provide high density 12G-SDI conversions. The 7800MDM-12G is a bi-directional multiplexer/de-multiplexer for converting UHD signals between quad-link 3G and 12G-SDI. Capable of transport format transformations in both directions simultaneously, it supports both SQD (square division multiplexed) as well as 2si (two sample interleaved) signals with the ability to convert between each on the quad-link I/Os. 7800MDM-12G needs only a single slot in a 7800 series frame, providing the high density broadcasters need during the transition phase to 12G-SDI.
Features
, [[CP-2116E or CP-2232E㈜피아이인터내셔널 ㅣ 대표이사 노일식
