The 7825DSK2-LG-HD and 7825DSK2-LG-3G Dual Downstream Keyer and Logo Inserter are complete packages that will insert simultaneous static or animated logos over a full bandwidth SDI program video signal.

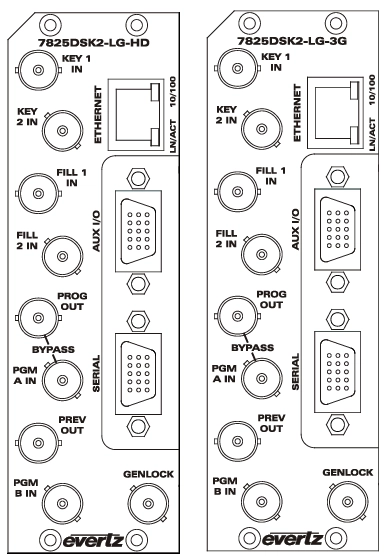

The 7825DSK2-LG-HD and 7825DSK2-LG-3G have been designed to manage and store multiple logo objects. Logos are stored in non-volatile Flash memory and may be downloaded to the hardware via Ethernet FTP using the Overture™ software. Both models have two sets of key and fill inputs to allow for external keyer sources.
In addition to the support for two external keyers, up to 16 static or animated logos can be keyed simultaneously with independent fade control for each logo. The size of each logo is variable and ranges from 1/25th to full screen. The position of the logo, fade rates, and animation rates are also user controllable. They come with 512MB of playout cache and 2GB of compact flash storage.
The onboard preview allows you to cue your logos for position and content verification prior to going "On Air". The optional features of the 7825DSK2-LG-HD and 7825DSK2-LG-3G are an air temperature probe and a crawl option which provides the ability to insert crawls.
The 7825DSK2-LG-HD and 7825DSK2-LG-3G are VistaLINK® capable, offering remote monitoring, control and configuration capabilities via Simple Network Management Protocol (SNMP). This product feature offers another solution to manage operations including signal monitoring and module configuration from SNMP-enabled control systems (Manager or NMS) locally or remotely.
Features
Two downstream keyers with full preview
Supports 525i/59.94, 625i/50, 720p/50, 720p/59.94, 1080p/60, 1080p/50, 1080i/50, and 1080i/59.94 video formats
Full 12-bit linear keyer with video fade-in and fade-out processing
Stores and inserts up to 16 static or animated logos with independent control of logo position, transparency and offset. Independent controls of fade in and fade out for static logos
Download logos from a standard PC using Ethernet using Overture™ software
512MB of available playout cache; 2GB of compact flash storage
LTC input for analog or digital 'Breakfast Clock' logos
16 channel embedded audio support
Video input bypass relays for power failure bypass protection
Voiceover support using embedded audio from program inputs/audio clip with configurable ducking level
Multiple control interface options including GPI, RS232 automation control
Optional crawl support
Optional temperature probe for temperature logos
Optional playout cache and compact flash upgrades Network Management
Built in VistaLINK® support for remote monitoring and control via SNMP (using VistaLINK® PRO)
The 7825DSK2-LG-HD and 7825DSK2-LG-3G modules do not require a 7700FC VistaLINK® Frame Controller. A direct Ethernet connection to the network for VistaLINK® operations must be provided by the user
EAS Option (+E)
Emergency alert crawls
Interfaces to major vendors of EAS decoders (over IP)
Maximum number of static logos reduced to 15
