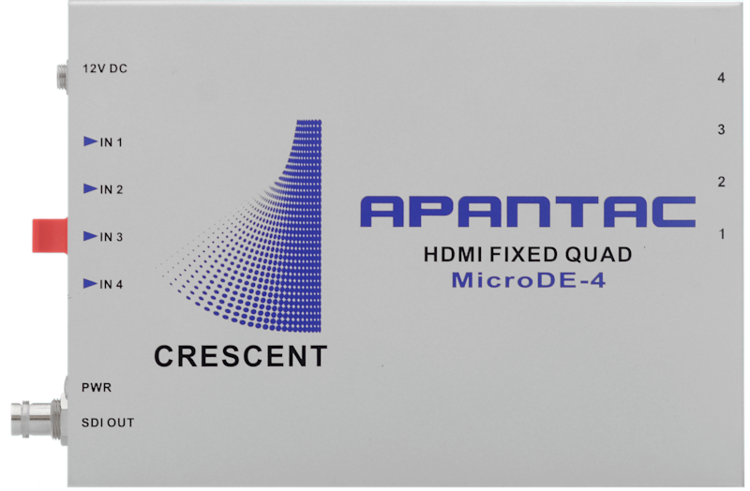

CRESCENT MicroDE
Simple Compact HDMI Quad Split
4x1 HDMI Quad-Split with Full Screen Capacity
Key Features
• 4 HDMI 1.4 inputs, fixed quad split
• Low power consumption - 15W
• Decodes up to 4 channels embedded audio per HDMI input and display them as meters
• Supports 480P, 720P, 1080i and 1080P inputs
• Ethernet for configuration, dynamic labels & Tallies (TSL)
• Simultaneous HDMI and SDI outputs
• 2 GPI tallies per window
• 8 GPI contacts, can be configured for tally or ASCII protocol
• Borders can be turned on or off
• One 32 characters label per window
• Text and background colors have adjustable transparency
• Safe area markers
• Visual Alarm tags for audio and video presence
• HDMI and SDI outputs have embedded stereo audio pair for monitoring
Key Features
• 4 HDMI 1.4 inputs, fixed quad split
• Low power consumption - 15W
• Decodes up to 4 channels embedded audio per HDMI input and display them as meters
• Supports 480P, 720P, 1080i and 1080P inputs
• Ethernet for configuration, dynamic labels & Tallies (TSL)
• Simultaneous HDMI and SDI outputs
• 2 GPI tallies per window
• 8 GPI contacts, can be configured for tally or ASCII protocol
• Borders can be turned on or off
• One 32 characters label per window
• Text and background colors have adjustable transparency
• Safe area markers
• Visual Alarm tags for audio and video presence
• HDMI and SDI outputs have embedded stereo audio pair for monitoring
