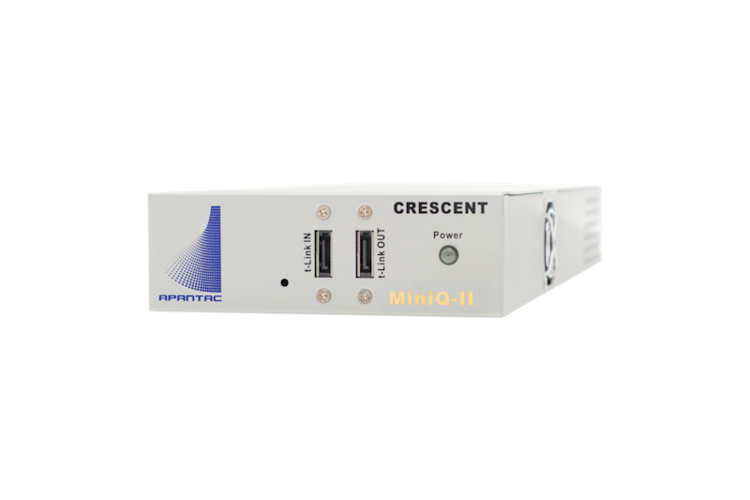

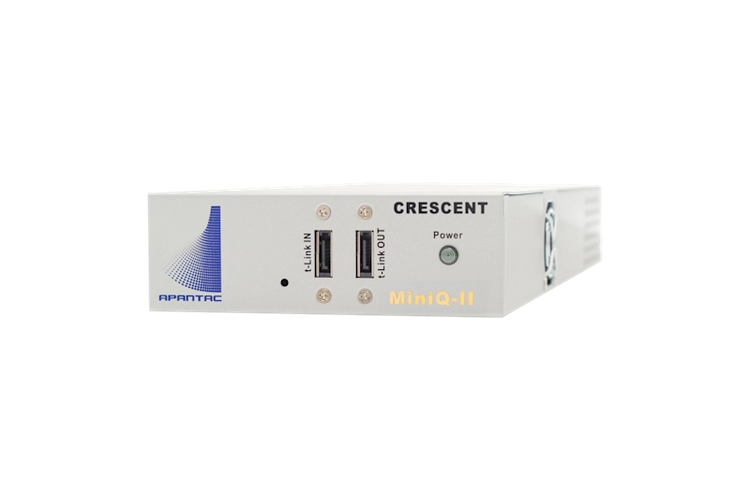

CRESCENT MiniQ
Standalone or Cascadable 4 SDI Input Multiviewer
4x1 Composite, 3G/HD/SD-SDI Video Multiviewer, with Cascading
Key Features
• 4 auto-detect 3G/HD/SD-SDI, PAL/NTSC inputs
• Low power consumption - 15W
• Cascadable to allow more inputs
• Single frame processing delay
• Decode up to 16 embedded audio per SDI input
• Ethernet for configuration, dynamic labels & Tallies (TSL)
• Simultaneous HDMI and SDI outputs
• 2 GPI tallies per window
• 8 GPI contacts, can be configured for tally or ASCII protocol
• Borders can be turned on or off
• One 32 character label per window
• Text and background colors have adjustable transparency
• Safe area markers
• Visual Alarm tags for audio and video presence
• Dynamic (TSL) UMD/Label
• Stereo analog audio monitoring output
• HDMI and SDI outputs have embedded stereo audio pair
• Power supply included
