The 3025EMC Master Control Switcher has been designed to meet the growing needs in today's ever-changing Master Control environment. The 3025EMC platform provides a cost-effective solution for facilities converting to SD, HD and 3Gb/s.

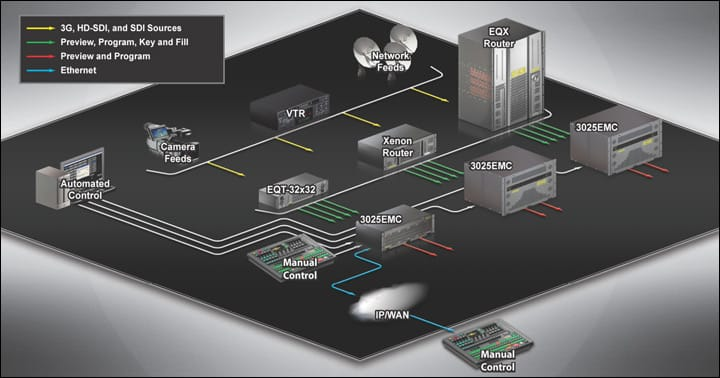

EMC System Diagram

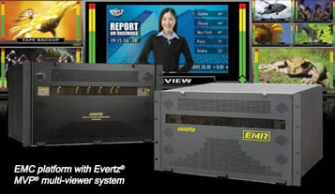

The EMC Platform
The 3025EMC is designed to support 3Gb/s, HD and SD video formats, including: 525i/59.94, 625i/50, 720p/59.94, 720p/50, 1080i/59.94, 1080i/50, 1080p/50, and 1080p/60. Each 3025EMC processes a complete Program and Preset path using a Program and Preset input. A third Emergency input allows users to quickly go to a safe feed in case of emergency.
The 3025EMC provides a Program output and a full “look-ahead” Preview of the next transition. It provides two independent Clean outputs, where video and audio are taken from either Program or Preview processing path. The 3025EMC has built-in bypass relays, which provide maximum protection for the Program and Clean feed in cases of failure.
For audio, the 3025EMC provides support for 16 channels of embedded audio on the Program, Preset, and Emergency inputs. Embedded audio is also taken from any of the other inputs to provide more audio mixing options.
The 3025AP, Advanced Audio Processing module, can be fitted with the 3025EMC, and offers IntelliGain® as an option for Program Loudness control, Dolby E/AC-3 decoding and encoding, Dolby UpMix and Dolby DownMix. The 3025EMC board offers four MADI inputs and outputs for discrete audio. Support for discrete AES inputs and AES outputs is provided via an external audio module called the 3025EMC-48x36-AESU.
EMC Block Diagram
EMC Control

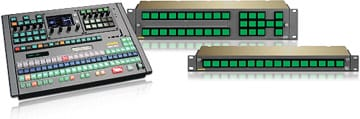

Manual Control • The 3025EMC system was designed for ease of use in live and automated environments. The range of control panels has been optimized for size and ease of use in single and multi-channel playout applications. All the control panels use 10 character LCD buttons, providing a dynamic control environment. Every button is user-configurable, enabling panel layouts that are operator friendly. The panel layout provides a menu system, exposing the full capability of the 3025EMC to the operator. The control panels range from a 1RU version to the full size desktop control panel.
Automated Control • Each 3025EMC channel can connect to the leading automation systems through a dedicated serial port located on every channel. This gives low latency and maximum protection against on-air problems. Crosspoint control of upstream routers is handled directly by the 3025EMC so only a single port on the automation system is required for each active channel. The control protocols used by 3025EMC are supported by the major automation vendors.
Upstream Router Control • Each 3025EMC channel can control any size of router matrix ranging from 12 inputs to 1024 inputs. For "turn-key" environments, the 3025EMC integrates seamlessly with the Evertz router product lines (from EQT to EQX). For existing routing infrastructures, the 3025EMC has support for the leading router vendors.
Branding & DVE

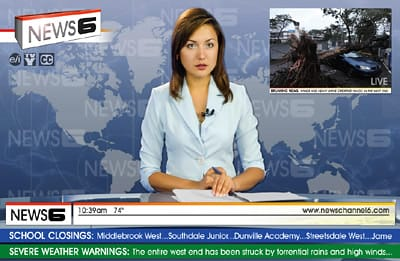

Branding • The 3025EMC has four internal key layers for static or animated "bugs" over the 3Gb/s, HD or SD video signal. The internal media generator also offers the options for the use of audio chimes/sniped, dynamic text for lower thirds, and dynamic text crawls. The size of each logo is variable and ranges from 1/25th to full screen. Various media formats (such as Tiff, TGA, Bitmap, and WAV files) can be imported into the Evertz Overture™ media software and transferred to the 3025EMC via Ethernet.
The position of the logo, fade rates, clip association and animation rates can be controlled through the various control panels. Media is stored into flash memory that can be quickly recalled by the various control panel’s automation. The internal key layers can optionally be expanded to 16 (+EMG).
With a removable compact flash option, you can have access to up to 8Gb (+PC8G) & (CF8G) of on-line media storage space. The Network Attached Storage (+NAS) option utilizes the Gigabit Ethernet of the 3025EMC to connect a media server device. This option allows the 3025EMC to access virtually unlimited archived media storage. This approach in addition to the Overture™ suite simplifies the workflow.
DVE • The 3025EMC offers an optional DVE feature. The 2-channel 2-D DVE option (+DVE-2D) or a 4-channel 2-D DVE option (+DVE- 2D-2) provides live and dynamic visual effects, such as picture sizing, picture-in-picture with full preview capabilities and positioning, and is fully integrated within the 3025EMC. The DVE is fully assignable within the video-processing path of the 3025EMC. The DVE may be controlled manually or from the automation

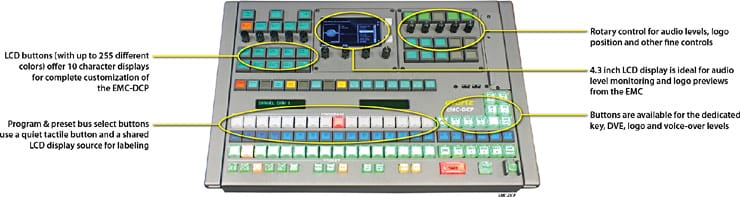

Control Panel
Audio & Voice-Overs
The 3025EMC has powerful and flexible audio capabilities. With a standard 16 channels of embedded audio, it is easy to integrate into any station. Audio level adjustments may be made from the panel at any time and stored on a source-by-source basis. Internal audio shufflers allow routing from any input to any output. Also, phase correction and mono-mixing is provided.
The 3025AP (Advanced Audio Processing) with built-in sample rate converters allow any mix of 44.1kHz and 48kHz sources to be used and silently switched on-air. Optional Dolby-E/AC-3™ Decoders (+DD2) and Dolby-E™ Encoders (+DE2) allow the 3025AP to handle Dolby 5.1 programming.
Both the 3025EMC and 3025AP boards can perform two independent stereo voice-overs, each mappable to any or all output channels. Full "pre-hear" allows level and voice-over ratio to be set prior to going on-air. Voice-overs can be taken to air combined with another transition or independently.
Evertz award-winning IntelliGain® (+IG) can be added to the 3025AP to provide Program Loudness control.
