is a full stack software set that provides a control, orchestration, monitoring and analytics in a single solution. It Bridges all of the major components (whether all-SDI, all-IP or hybrid) within the broadcast path under an enterprise software set of capabilities enabling broadcasters to simplify facility workflow and gain efficiency while reducing operational costs.
Device Information
Manage all your devices from one interface. Use MAGNUM's devices and links app to consolidate the following:
Multiviewer Management & Design
MAGNUM's Multiviewer Control is industry leading. From our Web-UI, you'll be able to:
3rd Party Device Support: Management & Control
MAGNUM OS supports a wide range of third-party devices in addition to Evertz devices, offering comprehensive routing, stream tuning, parametric control, monitoring, and analytics. The Device Control app enables users to add, remove, and view controllable devices. Parametric controls for each device can be integrated into MAGNUM-managed interfaces or customized workflows via the MAGNUM Reflex engine, allowing for tailored control in both broadcast and non-broadcast applications.
Incident Reports
Create, record, update, and track events within the system. Users can enter detailed reports for various incidents, such as video loss or audio dips, and provide information for review and action. Events can be updated with additional details and status changes throughout their lifecycle. The app also supports integration with external systems like JIRA, PagerDuty, and more enhancing extensibility.
Key Features
Control, Orchestration, Monitoring and Analytics
Control / Orchestration
As the control and orchestration layer of a system, MAGNUM OS through its comprehensive software modules bridges all of the major components (whether all-SDI, all-IP or hybrid) within the broadcast path under a single or distributed point of control enabling broadcasters to simplify facility workflow and gain efficiency while reducing operational costs. As the industry migrates towards an IP-centric facility, MAGNUM OS through its various software modules enables content providers to seamlessly transition from SDI to IP without compromise. As the SDVN orchestration and control layer, MAGNUM OS leverages Evertz and 3rd Party 10/100GE high capacity switch fabrics, media IP gateways, and Evertz traditional SDI products such as EQX 3G/HD/SD-SDI routers to enable broadcasters, content distributors and service providers a flexible, format agnostic and scalable infrastructure for SD, HD, 3G, and Ultra HD (4K and 8K) video. MAGUM OS provides the configuration and management of these systems ranging from single router systems (with 10s of sources / destinations) to large enterprise sized systems (with 10,000s of sources / destinations across multiple systems)
MAGNUM OS Monitoring Dashboard Example
MAGNUM OS Basic Alarms Dashboard Example
Monitoring
MAGNUM OS through the MAGNUM-NMS modules is able to provide most comprehensive end-to-end facility and signal monitoring and management system for broadcasters and service providers.
MAGNUM OS enables operators through the Evertz VistaLINK® PRO technology to monitor and manage complex systems more effectively than before. MAGNUM OS through the MAGNUM-NMS modules offers a wide range of functionality including web access, fault management, configuration management, alarm/event notification, report and log management, intelligent correlation and root cause analysis, user-defined graphic views/dashboards.

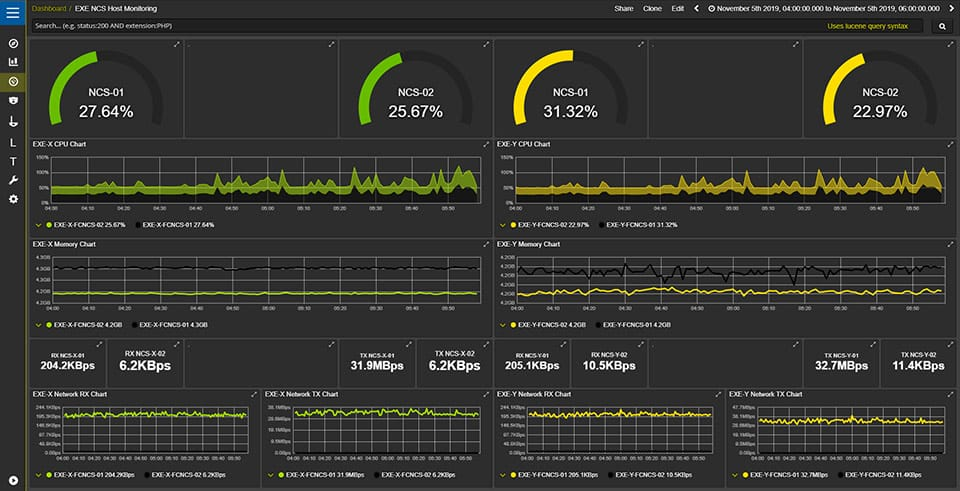

Real-time Performance Dashboard Example

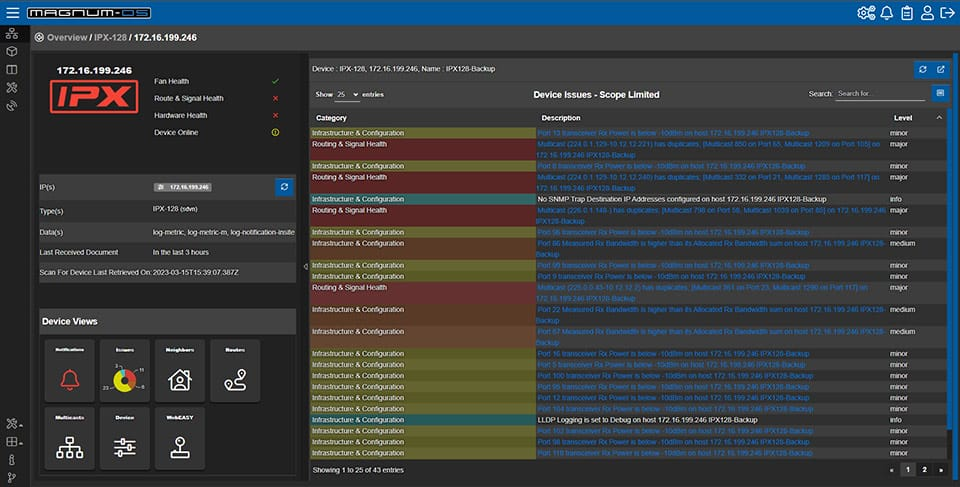

MAGNUM OS IPX Status Dashboard Example
Analytics
MAGNUM OS leveraging the Evertz inSITE™ technology provides operational intelligence for any media organization by collecting, searching, monitoring and analyzing data from any device source in your facility. MAGNUM OS through the MAGNUM-Analytics modules allows broadcast and media organizations to extract and visualize hidden device data like never before. It also uses a wealth of information to improve operational efficiency, support and drive new business decisions and uncover new service offering opportunities.
Throughout broadcast and media enterprises, there is untapped value in the machine data generated by your business infrastructure and applications. Hidden in this data is the Operational Intelligence you require to run and optimize your operations. MAGNUM OS provides custom, documented, industry focused data collectors and APIs for easy integration within media and broadcast environments. Evertz' unique scenario, pattern-matching, machine learning algorithms, notification subsystems and direct integration with its NMS and Control / Orchestration applications, allowing MAGNUM OS through the MAGNUM-Analytics modules to provide a powerful tool sets that extends beyond basic log analysis.
Performance
MAGNUM OS IPX Status
Applications
Production
Increasingly complex workflows, staffing reductions, as well as size and space constraints are all challenges that media broadcasters face today. At the center of the Evertz Production solution is MAGNUM OS which unifies the Control, Orchestration, Monitoring, and Analytics of all the elements found in production facilities including the key elements of routing, multiviewing and tally.
Master Control
Master Control is the heart of any broadcast facility. Demands for reliability, serviceability and signal protection are essential. MAGNUM OS using Control, Orchestration, Monitoring, and Analytics capabilities unifies these essential devices by providing robust router, multiviewing and tally, and monitoring solutions.
Facility
Evertz offers high performance and cost effective solutions that optimize workflow and improve efficiency within the facility. MAGNUM OS using Control, Orchestration, Monitoring, and Analytics capabilities provides a single unified interface for managing, controlling, monitoring, and analizing theses various systems. Whether the requirement is interfacing for routing content, centralizing name management, multiviewers or Intelligent signal pathing, MAGNUM OS is able to simplify the operation.
Outside Broadcast
In challenging, quick turn production environments MAGNUM OS provides a solution for unifying the control of all the elements found in mobile production including routing, multiviewing and tally. Providing a single interface for control and management enables more to be accomplished in less time and effort. A web interface allows changes to be made without being confined to a specific location.
Transmission / Transport
MAGNUM OS simplifies the control of inbound or outbound signal process flow using its Intelligent Signal Pathing engine for automatic conversion. Management and routing of IP/optical resources, such as IP fabric or gateways is also simplified by using the familiar source and destination based architecture.
