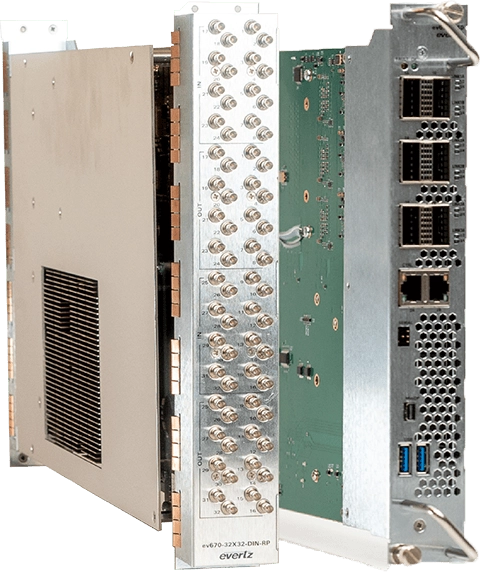

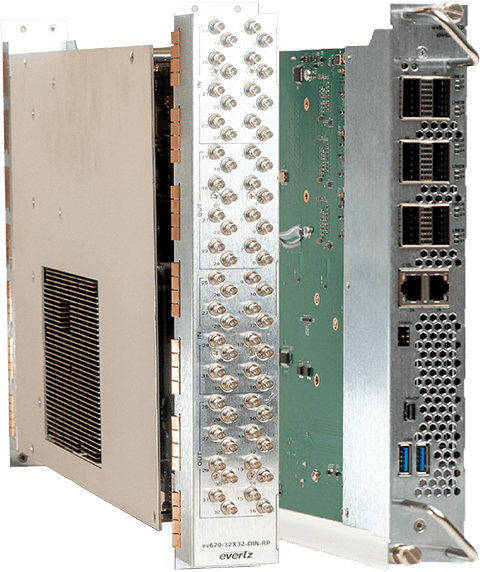

The ev670-X30-HW-V2 is a next-generation virtualized media processing platform revolutionizing how media facilities are designed, enabling customers to move to an infrastructure that allows for essential core broadcast services to be applied on a generic hardware platform when required. This paradigm shift from discrete, fixed-function hardware to compute pools of generic hardware with licensable software services provides media companies a flexible, scalable and agile broadcast infrastructure to dynamically meet and adapt to changing facility requirements.
The ev670-X30-HW-V2 is an FPGA-accelerated compute blade that supports both 12G/3G/HD-SDI and IP interfaces. The ev670-X30-HW-V2 provides FPGA-based processing cores where a number of different types of applications (APPs) can be configured, providing services that include: multiviewers, gateway and video, audio and ancillary data processing functionality. As a future-proof, FPGA-based compute blade, ev670-X30-HW-V2 provides all the scalability and flexibility of a virtualized environment, while also ensuring low latency, low power and reliable real-time processing.
ev670-X30-HW-V2 utilizes Evertz' MAGNUM orchestration software to allow users to easily manage apps, licenses and the pool of compute resources. These software tools allow media companies to deploy the required applications (e.g. multiviewer, gateway or video/audio/ancillary processing) as needed. The ev670-X30-HW-V2 provides greater efficiency and utilization of compute resource with respect to fixed function devices or COTS-based hardware, allowing users to accomplish precisely what they need, when needed.
The ev670-X30-HW-V2 supports SNMP, IGMP, JSON, REST and NMOS IS-04/05 protocol. These interfaces provide seamless integration with Evertz' VUE user interface, MAGNUM, VistaLINK® PRO and third-party systems.
For more details on the JT-NM Tested program at IBC 2022 and test results please see
Features
ev670-X30-HW Applications (APPs)
Standalone high-density multi-image display processor technology. Supports up to 64x 3G or up to 16x UHD SMPTE ST 2110 input signals and up to 8x 1080p or 2x UHD outputs over SMPTE ST 2110. Also provides SDI outputs, rear plate needs to be ordered separately.
Standalone high-density multi-image display processor technology. Supports up to 64x 3G SMPTE ST 2022-6 input signals and up to 8x 1080p outputs over SMPTE ST 2022-6. Also provides SDI outputs, rear plate needs to be ordered separately.
Standalone 12G-SDI multi-image display processor technology. Supports up to 32x 12G-SDI input signals and up to 8x 1080p or 2x UHD (12G-SDI) outputs. Full video, audio and ancillary monitoring.
Standalone high-density multi-image display processor technology. Supports up to 16x JPEG XS over SDI input signals and up to 4x 1080p or 2x UHD outputs over SDI. Optional advanced monitoring or standard monitoring. Rear plate needs to be ordered separately.
