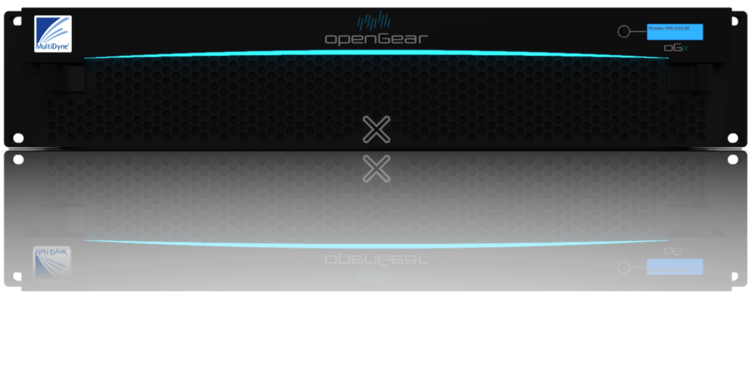

oGx Modular Terminal Gear Frame System

oGx was built from the ground up for reliability. Decades of engineering and broadcast experience have been poured into every detail to ensure oGx is up to the demand task of 24/7 operation. The system includes integrated smart cooling with redundant cooling for the power supplies and an easy-to-clean air filter. The frame features a passive backplane, so that every active component in the system can be hot-swapped from the front. oGx also supports hot-swappable redundant power supplies for maximum protection.

Smart Front Panel

Know the status of your frame at a glance. Integrated LCD display provides frame name, IP address and reports any alarms. Customize the look of your installation with the bold, programmable RGB LED bar, which also doubles as not-to-be-missed alarm indicator.

Smart Modular Design

oGx offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio, and fiber, supporting analog to UHD and IP. The independent rear modules are available in different I/O configurations for select cards, including high density split rear modules allowing up to 20 independent openGear® cards in the oGx frame. Each frame also includes dual reference inputs.

Smart Control

oGx offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio, and fiber, supporting analog to UHD and IP. The independent rear modules are available in different I/O configurations for select cards, including high density split rear modules allowing up to 20 independent openGear® cards in the oGx frame. Each frame also includes dual reference inputs.
