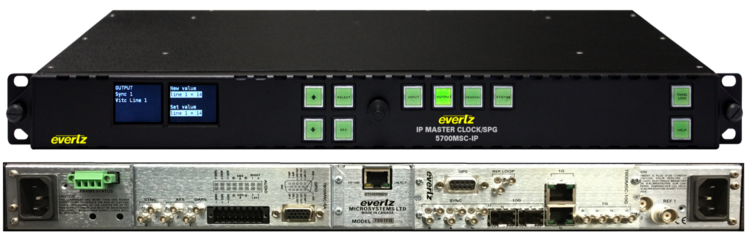

5700MSC-IP IP Network Grand Master Clock & Video Master Clock System

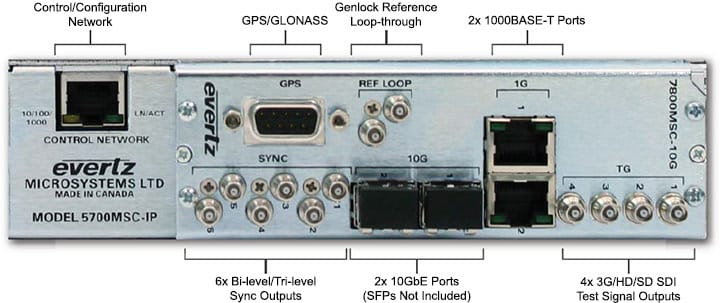

The 5700MSC-IP is an IP network root leader clock, video sync and time code generator capable of being referenced to GPS, GLONASS, GALILEO, BEIDOU and QZSS global navigation satellite constellations in L1 band with the included smart antenna, and additionally L1 and L5 bands with the optional MSC-RF-ADAPT-720 GNSS receiver and MSC-RF-HEAD-720 dual band multi-GNSS RF antenna. The system features 2x 1GbE, 2x 10GbE ports, 6x independently configurable and fully timeable Sync outputs, 4x SDI video test generator outputs and a loop-through input. For hybrid plants where LTC outputs, DARS and AES/analog audio test generator signals are required, an optional (+AUX) module is available. This combo IP network root leader clock and sync generator is ideal for timing today's SMPTE ST 2110 IP-based video broadcast, production and distribution facilities. It provides all the future timing needs of an IP-based plant while providing precision reference to baseband SDI/Analog facilities with full in-band management and remote access via SNMP or Telnet.
