The OVRT-LIVE-2U-B2 is an advanced 2RU dual-channel integrated playout, branding and graphics solution with full support for SD, HD, 3G and UHD Master Control applications. The OVRT-LIVE-2U-B2 offers an economical and scalable platform with deployment options for SDI, IP or hybrid environments.
The OVRT-LIVE-2U-B2 is equipped with up to 6.6TB of RAID 6 local content storage. Content can be delivered in a variety of wrapper and codec formats for playout all the while preserving all the integrity of the video, audio, and ancillary data in the source content. For quick turn applications, content can be streamed directly from the central store or FlashNAS.

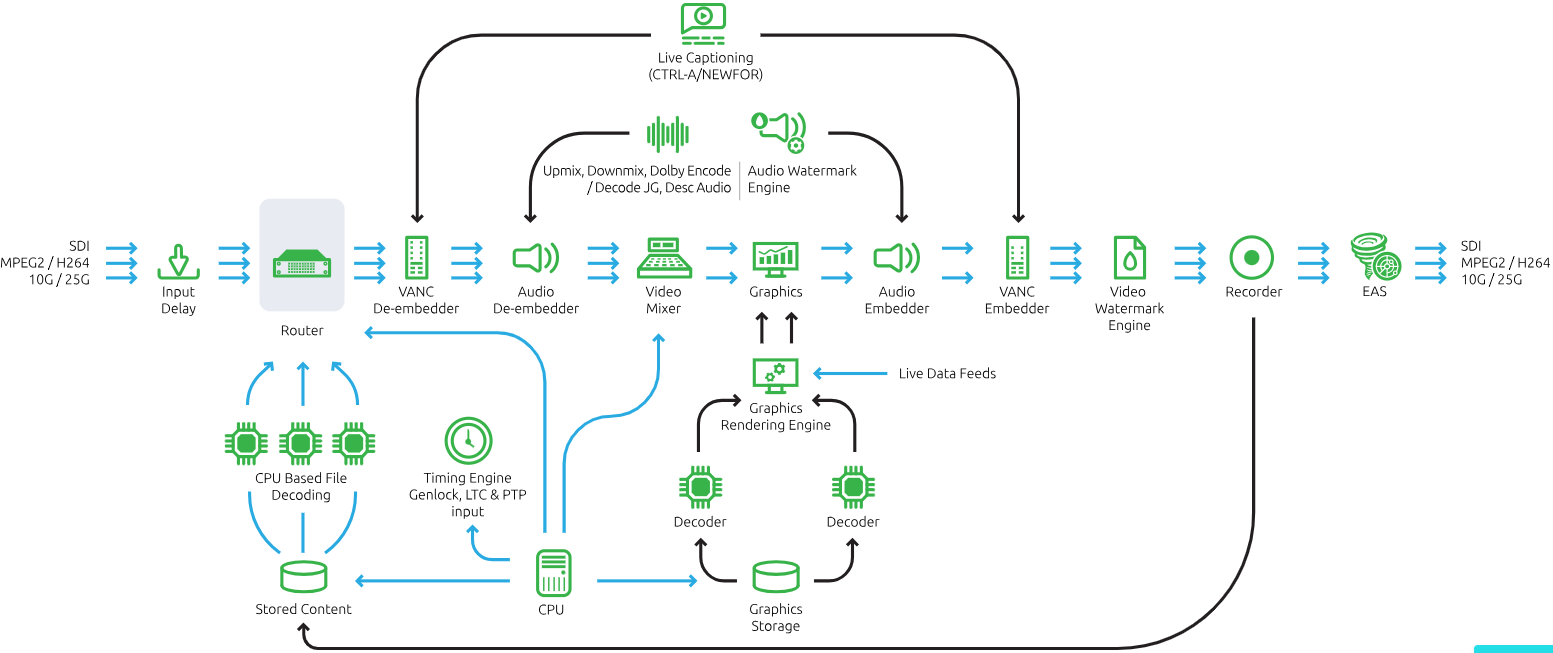

The OVRT-LIVE-2U-B2 provides support for a variety of I/O formats including SDI, SMPTE ST 2022-6, ST 2110 and IPTS along with an extensive list of integrated audio, video, ANC and graphics processing features. All these in combination with additional features like Nielsen and Kantar watermarking, multi-frame rate support, delayed playout, translate to highly integrated transmission chain with minimal downstream processing gear and reduced rack space, power and cooling requirements.
When integrated with Evertz's world class Mediator-X MAM/automation system, the full potential of the OVRT-LIVE-2U-B2 is unleashed, unveiling an astonishing list of complex features that can only be achieved by a truly integrated system. Support for object storage, on-premises or in the cloud. A self-contained and standalone automation driver provides additional redundancy during normal operations and continued operation during system maintenance and upgrades. Play-While-Record (PWR), Playlist record, Dynamic AFD and XDS data insertion, multi-language subtitle insertion, component-based playout are all accessible through a feature-rich, user-friendly HTML5 interface via web browser.
Key Features & Benefits
Support for multiple I/O and frame rates
Advanced ancillary data processing
Content protection processing
Live and external subtitle and caption processing
Integrated native and template graphics with DVE, 3D and countdown timer support
Expanded Features & Benefits
Multiple I/O Support
SDI (3G/HD/SD)
IP compressed (H.264/MPEG-2)
IP uncompressed (SMPTE ST 2110, (SMPTE ST 2022-6)
Multiple Frame Rate Support
2160p/59.94, 2160p/50
1080p/59.94, 1080p/50, 1080i/59.94, 1080i/50
720p/59.94, 720p/50
625i, 525i
Advanced Ancillary Data Processing
608/708 captions
OP42/OP47 subtitles
DVB subtitles
AFD (SMPTE ST 2016)
Timecode
SCTE 104
V-Chip / XDS
External Subtitle & Caption Processing
SCC conversion to 608/708/DVB/ Open Captions/SCTE 27
STL conversion to OP42/OP47/DVB/ Open Captions/SCTE 27
TTML conversion to OP42/OP47/DVB/ Open Captions/SCTE 27
PAC conversion to OP42/OP47/DVB/ Open Captions/SCTE 27
Live Subtitle & Caption Processing
Ctrl-A protocol for 608/708/Open Captions
NewFor protocol for OP42/OP47/Open Captions
Advanced Video Processing
Up/down/cross conversion
AFD-based scaling
Advanced Audio Processing
Dolby® E/E/DD+ encode/decode
Up-mixing, down-mixing
IntelliGain®
Audio shuffling
DAI - Descriptive Audio Insertion
Watermarking & Content Protection Processing
Nielsen
Numeris
Kanter
OAR
Program Delay & Record
Delayed playout with user-configurable delay
Configurable input delay (up to 10 sec for 3G/HD/SD)
Live record (Program, Clean or Custom)
Graphical Features
Native full screen graphic playout
Support for MOV, JPG, PNG, BMP and more
Full DVE support
Lower-third graphics
Dynamic video and text updates
Schedule-driven graphics
RSS feed-driven text updates
Linear Key and Fill inputs
Countdown/deadline timer support
