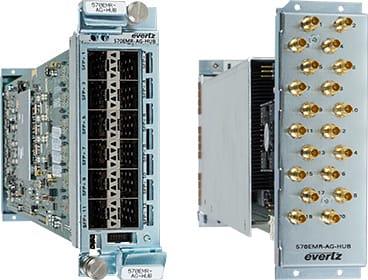

The 570EMR-AG-HUB is an audio gateway for IP translation to/from TDM interfaces for existing EMR audio systems as well as new EMR audio router installations. The 570EMR-AG-HUB can also be used for IP audio conversion including AES67 to SMPTE ST 302M.
The 570EMR-AG-HUB module provides a gateway to link into IP infrastructures as well as allow a more efficient way to tie-line routers together. IP-based audio packetized and transported over fiber will provide greater density and longer distances than traditional copper based solutions would yield. TDM audio sources and destinations include all EMR audio modules plus EQX embedders, deembedders and Frame sync options.
The 570EMR-AG-HUB is hot-swappable and monitored via VistaLINK®.
Applications for the 570EMR-AG-HUB include:
Bulk audio connection between audio systems such as connecting multiple mobile broadcast vehicles using EMR audio router modules
Audio bridging between devices supporting ST 302M or AES67 to EMR/EQX routing systems
IP audio routing for radio using Evertz IP switches
Optimized for operation in a 10GbE and 25GbE IP SDVN environment
Features
The 570EMR-AG-HUB module provides a gateway to link into IP infrastructures as well as allow a more efficient way to tie-line routers together. IP-based audio packetized and transported over fiber will provide greater density and longer distances than traditional copper based solutions would yield. TDM audio sources and destinations include all EMR audio modules plus EQX embedders, deembedders and Frame sync options.
The 570EMR-AG-HUB is hot-swappable and monitored via VistaLINK®.
Applications for the 570EMR-AG-HUB include:
Bulk audio connection between audio systems such as connecting multiple mobile broadcast vehicles using EMR audio router modules
Audio bridging between devices supporting ST 302M or AES67 to EMR/EQX routing systems
IP audio routing for radio using Evertz IP switches
Optimized for operation in a 10GbE and 25GbE IP SDVN environment
Features
