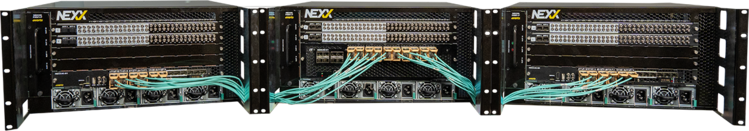

Fiber X-LINK is here, just like its predecessor X-LINK, you can link routers together or connect to external devices without affecting IO. The heart of the system has more capabilities than ever with Routers no longer just SDI inputs and outputs, but with Advanced Multiviewers, Up Down Cross, Encoders/ Decoders, and more. FX-LINK allows you to connect up to 20  slots so that you can keep growing.

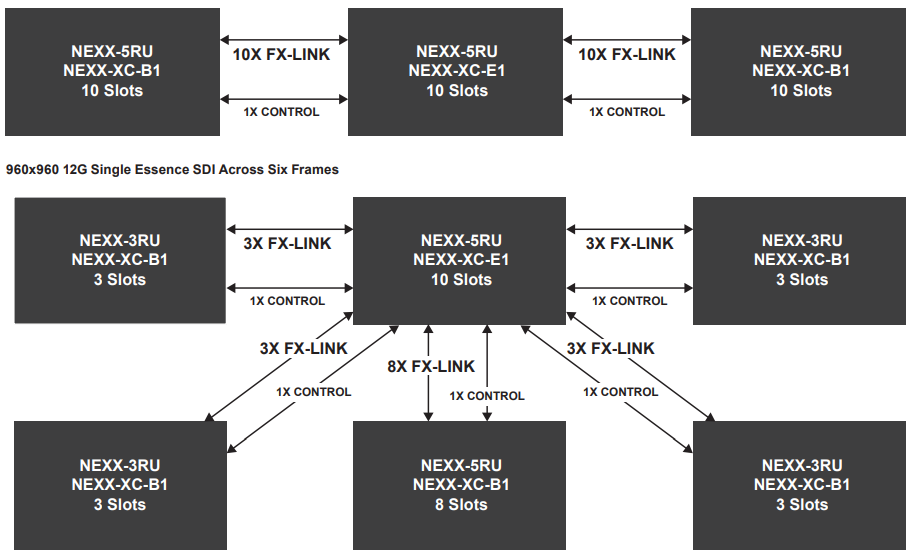

A completely non-blocking solution up to 960x960 single essence 12G-SDI. FX-LINK looks like one router. Not only in the control system, , but also in the  itself. Each FX-LINK supports one module worth of data, whether it is the NEXX-IO-C1, NEXX-670, or the NEXX-Scorpion. For optimal performance all crosspoints should be connected to a common reference system.
