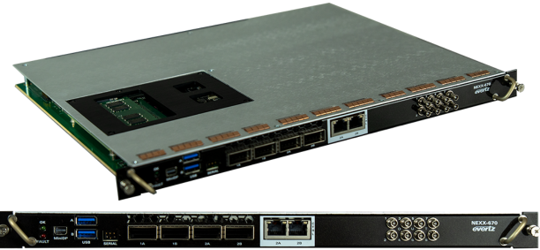

The NEXX-670, is Evertz' latest generation of 12G Multiview and fifth generation of ultra high-density gateway for IP encapsulation / de-encapsulation. It was only natural for us to transition our bestselling ev670-X30-HW-V2 into a compact platform.
Features & Benefits
Hardware
evVIP-APP-SDI Application
evIPG Application
<Application>

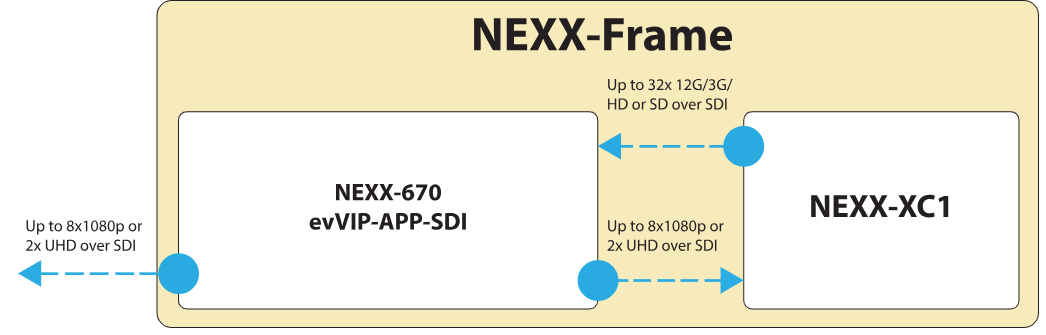

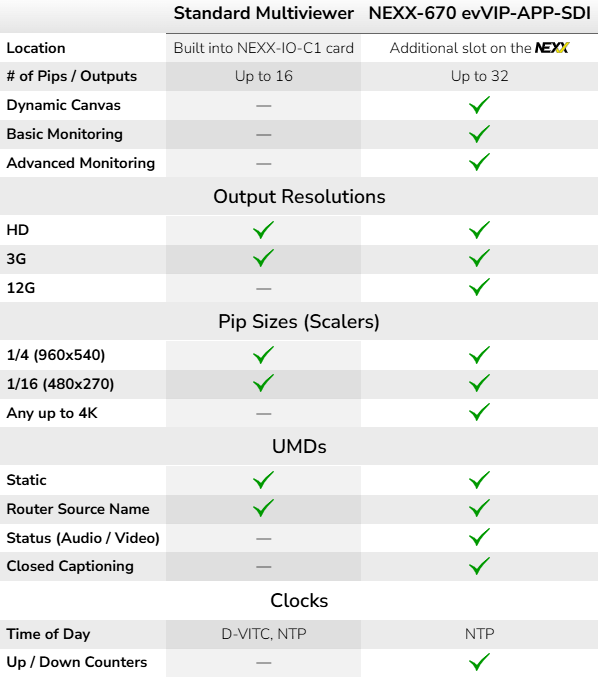

Multivewer : evVIP-SDI-APP
A full featured enterprise router and Multiview in one compact frame has never been done like this. The NEXX-670 evVIP applications offers high quality 12G outputs, dynamic live editing canvas' with up to 32 different size scalers on the output all at the same time. Signal monitoring is simple with black, frozen, macroblock, motionless video, and quiet, loud, or silent audio. Go even further with our Advanced Monitoring option to keep track of Caption Data / Content loss, Standard change/mismatch, Nielson, and much much more.

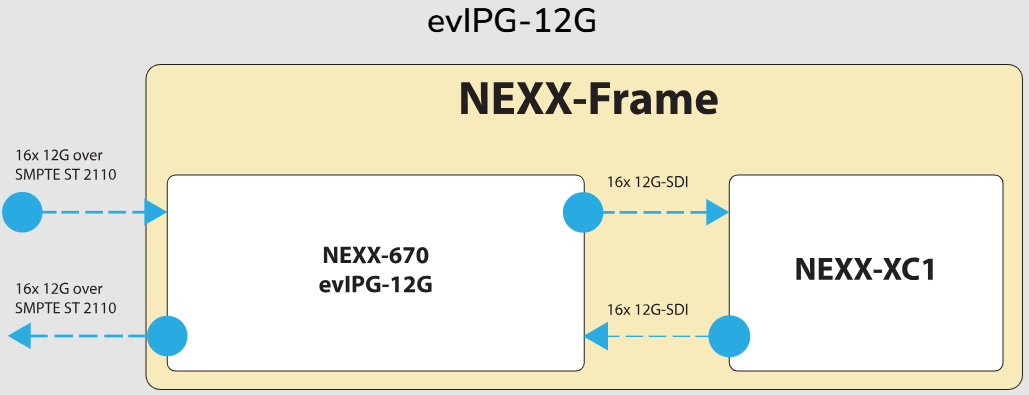

IP gateway : evIPG
Implementation into a hybrid system is seamless with the NEXX-670 evIPG application. Quickly attach a truck or flight packs to a master control room or back haul your signals across campus. Two main and redundant 100GB QSFPs bi-directionally contribute up to 32 inputs and outputs at 3G or 16 inputs and outputs at UHD. The SDI feeds directly into the cross point eliminating the need for extra cumbersome cables.
Broad Support of Standards
1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080p/23.98, 1080p/24, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 525i/59.94, 625i/50.
For 12G standards, contact factory.
