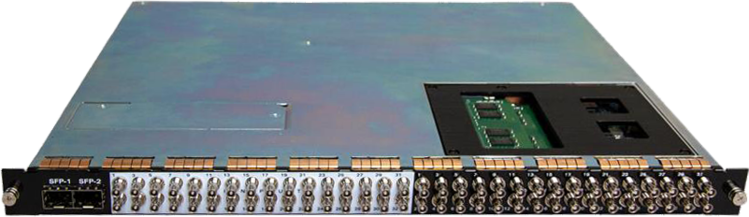

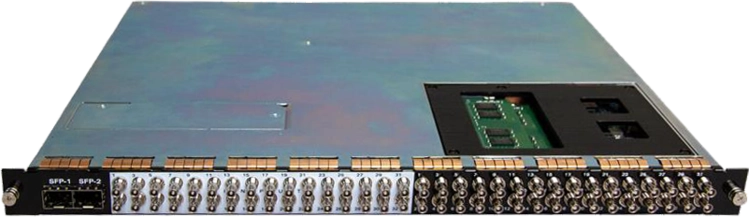

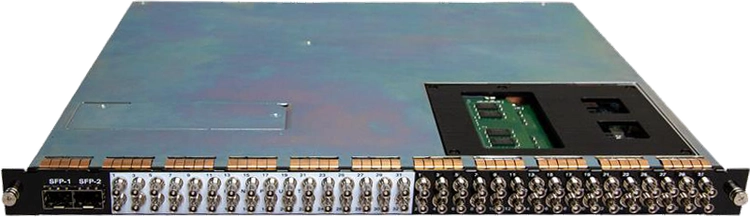

Here and now, the NEXX-IO-C1, the essence of any NEXX frame, brings SDI routing to the NEXXT level. With unparalleled SDI processing to distribute signals like never before.
Features
Modular card for the NEXX One slot card
32 HDBNC Inputs x 32 HDBNC Outputs
Support for SD/HD/3G/6G/12G data rates
270MB ASI Support for routing
Support for mixed concurrent data rates on a per port basis
2x2 MADI or (1x1 MADI and 1x1 TDM) input MADI SRC for unlocked signals
Audio Embedding and De-embedding on every port
3G Frame Sync on all 32 inputs OR UHD/12G Frame Sync on 16 inputs
Gear boxing: quad 1080p to single essence 12G & single essence 12G to quad 1080p
4x Standard Edition MVs (16x1)

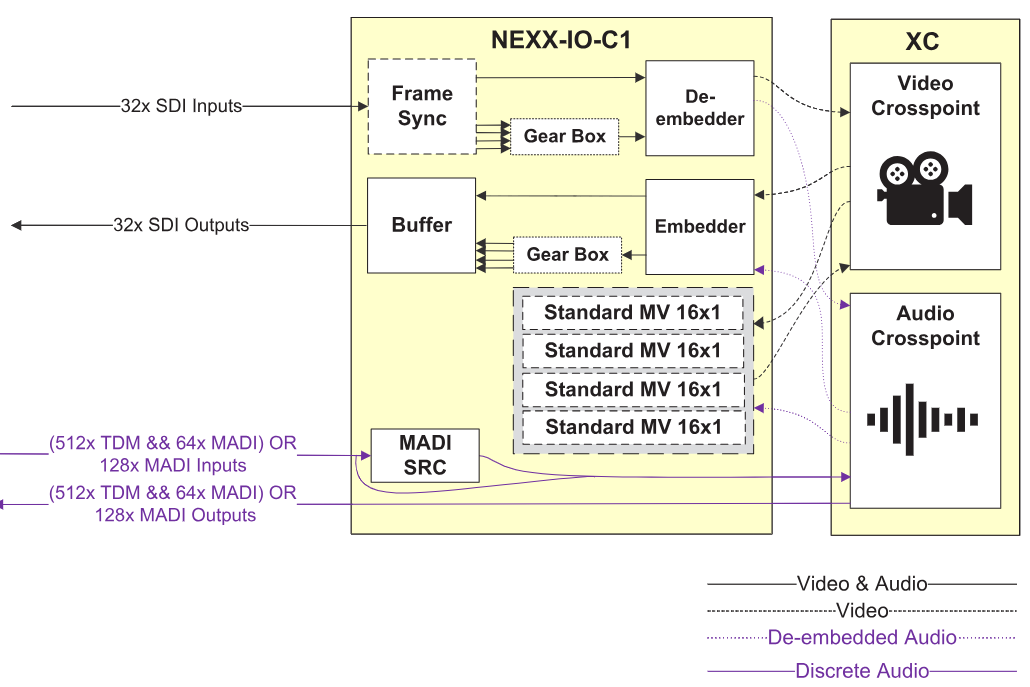

SDI Module
32x32 HDBNC Ports
Gear boxing: quad 1080p to single essence 12G & single essence 12G to quad 1080p
1SFP for TDM or MADI
1SFP for MADI
Support SM, MM, DIN, or HDBNC SFPs
Input Frame Sync
Frame Sync on all 3G Inputs
Frame Sync on 16 UHD Inputs
Four Standard Edition Multiviewers
Standard Edition Multiviewers
Individually licensed Multiviewers
Four 16x1 Multiviewers on each Module
Mixed concurrent inputs including SD, HD, 3G, and 12G
1080p or 1080i (50 or 59.94) outputs
Static and Dynamic UMDs with Image Video and TSL 5
Timecode (NTP and D-VITC)
Up to 16 Visual Audio Bars
Ability to place the UMD and Audio bars inside or outside active video with four modes of reduction

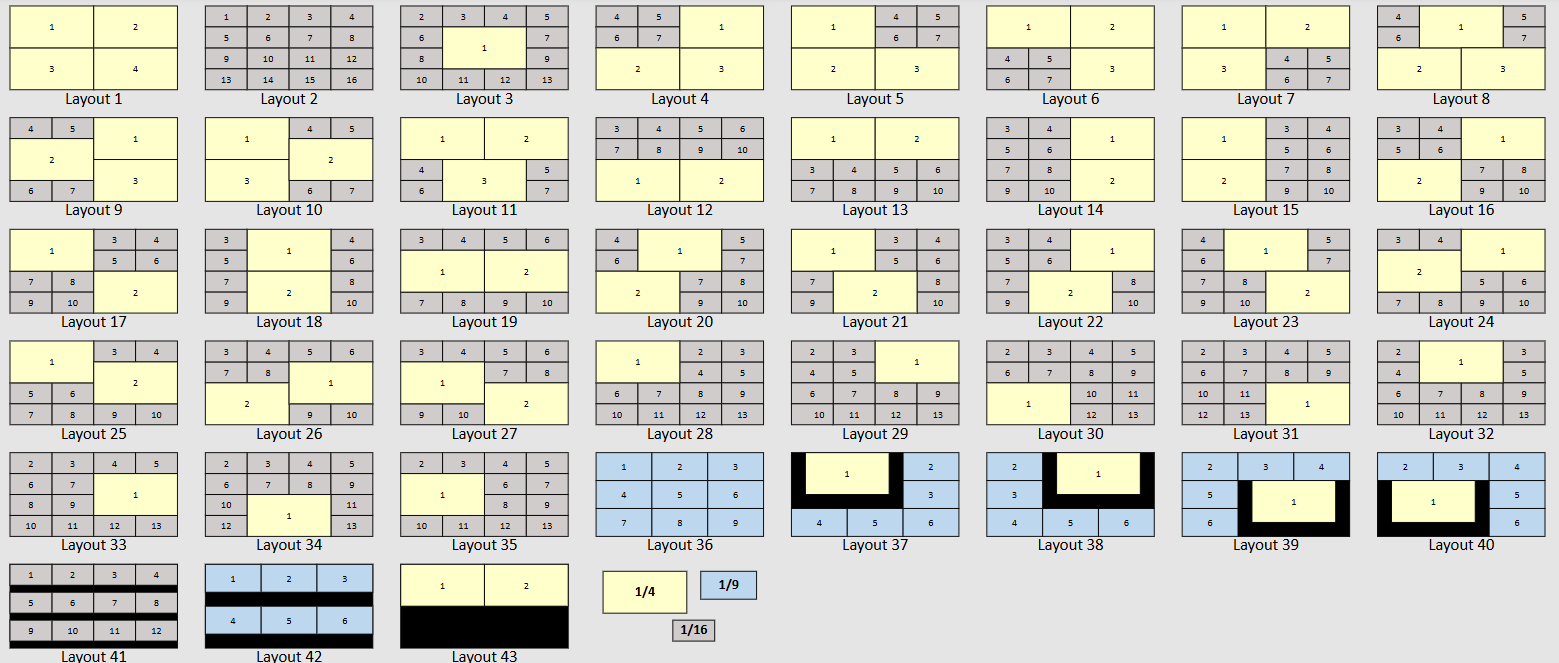

43 Fixed Layouts
Features
Modular card for the NEXX One slot card
32 HDBNC Inputs x 32 HDBNC Outputs
Support for SD/HD/3G/6G/12G data rates
270MB ASI Support for routing
Support for mixed concurrent data rates on a per port basis
2x2 MADI or (1x1 MADI and 1x1 TDM) input MADI SRC for unlocked signals
Audio Embedding and De-embedding on every port
3G Frame Sync on all 32 inputs OR UHD/12G Frame Sync on 16 inputs
Gear boxing: quad 1080p to single essence 12G & single essence 12G to quad 1080p
4x Standard Edition MVs (16x1)
SDI Module
32x32 HDBNC Ports
Gear boxing: quad 1080p to single essence 12G & single essence 12G to quad 1080p
1SFP for TDM or MADI
1SFP for MADI
Support SM, MM, DIN, or HDBNC SFPs
Input Frame Sync
Frame Sync on all 3G Inputs
Frame Sync on 16 UHD Inputs
Four Standard Edition Multiviewers
Standard Edition Multiviewers
Individually licensed Multiviewers
Four 16x1 Multiviewers on each Module
Mixed concurrent inputs including SD, HD, 3G, and 12G
1080p or 1080i (50 or 59.94) outputs
Static and Dynamic UMDs with Image Video and TSL 5
Timecode (NTP and D-VITC)
Up to 16 Visual Audio Bars
Ability to place the UMD and Audio bars inside or outside active video with four modes of reduction
43 Fixed Layouts
